Mechanical Properties:

Typical Application: BGA, LGA, QFN, DFN, QFP

Minimum Pitch: 0.35 mm

Probe Compliance: 0.4 mm

Contact Force: 10 Grams @ 0.40 mm (recommended travel)

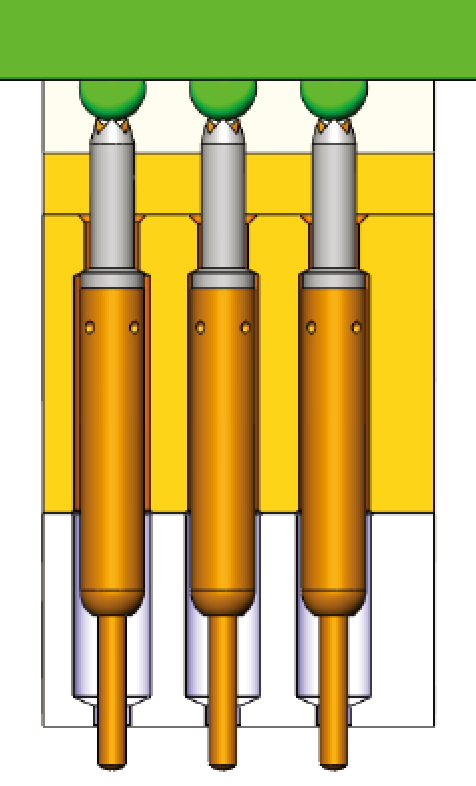

Contact Type: 4-point crown

Top Plunger: HG Alloy/ Au Plated

Operating Temperature: -55 °C ~ 120 °C

Socket Material: Aluminum

Contact Life: Tested to 300K

Electrical Properties

Contact Resistance: < 150 mΩ

Current Carrying Capacity: Up to 1.25 Amps

Insertion Loss (GSG): 31 GHz @ -1 dB

Return Loss (GSG): 40 GHz @ -10 dB

Cross Talk: 40 Ghz @ -35 dB
