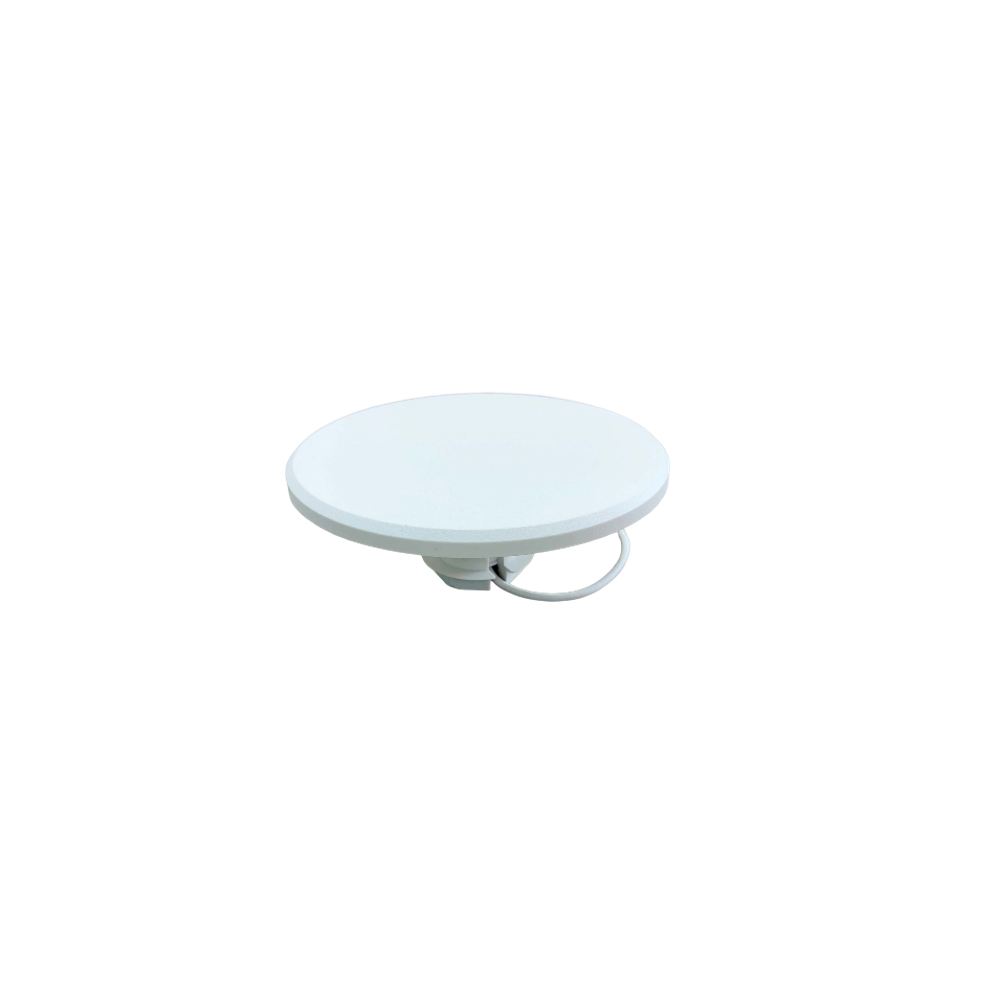

Low PIM Low-profile Omnidirectional Antenna
$$
The SF698-4000H-6-360A is a Low PIM indoor wideband omnidirectional low profile ceiling mount antenna. It is designed to provide pattern coverage that is optimized for indoor coverage requirements at 698-960 MHz, and 1690-4000 MHz for the GSM, DCS, UMTS, AWS-3 and LTE/WiMAX frequency bands. The SF698-4000H-6-360A is applicable for environments where aesthetics and wide angle coverage are necessary for successful wireless deployment. The surprisingly small size and extreme low profile enables maximum mounting flexibility while maintaining desired in-building aesthetics
Electrical Specifications | |||||||
Item No. | SF698-4000H-6-360A | ||||||
Frequency Range | MHz | 698-806
| 806-960
| 1350-1550
| 1690-2170 | 2300-2700 | 3300-4000 |
Gain | dBi | 3/1.5±0.5 | 2.5/2.2±0.5 | 4/3.5±0.5 | 4/3.5±0.5 | 4.5/3.5±0.5 | 3/4.5±1.0 |
Polarization | Linear Horizontal | ||||||
VSWR | ≤1.6/1.8 | ≤1.5/1.5 | ≤2.0/1.5 | ≤1.6/1.5 | ≤1.6/1.6 | ≤2.1/1.8 | |
Isolation | dB | ||||||
PIM, 3rd Order, 2 x 20 W, | dBc | ≤-140 | |||||
Input Power, maximum | watts | 50 | |||||
Impedance | ohm | 50 | |||||
Mechanical Specification | |||||||
Connector Type | N-female | ||||||
Size | mm | Φ180×7.8 | |||||
Antenna Weight | kg | 0.24 | |||||
Mounting Kit | Ceiling, via hole (standard) | ||||||
Radome Material and Color | ABS, White, UL94-V0 | ||||||
Operational Temperature | °C | -55～60 | |||||
Operational Humidity | % | < 95 | |||||
Radiation Pattern | |||||||
